01 — asset info

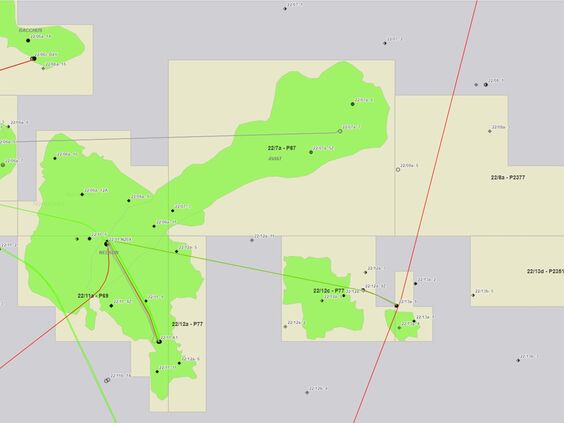

The field lies within Block 22/13a, 2 km east of the Howe field. It is a single well subsea tied back to Howe, with first production in 2010. Bardolino is currently shut-in pending a well intervention planned for 2025.
Key facts:
- Block: 22/13a
- Approx distance: 212km Northeast of Aberdeen, 12.5km East of Nelson Platform, 2km East of Howe
- Water Depth: 298ft (88m)
- Hydrocarbons Produced: Oil and Gas
- Exported Method: Tie-back to Nelson Installation, Oil is exported through the Forties Pipeline System (FPS), Gas is exported to St. Fergus via the Fulmar Gas Pipeline
ICOP: High-Level Infrastructure Information
- Entry Specification: Sweet Crude Oil
- Exit Specification: Refer to FPS Oil Export Entry Specification, refer to Fulmar Gas Line Entry Specification
- Outline details of Primary separation processing facilities: Single-stage gravity separator (with series test separator), coalescer, hydro cyclones, active produced water flash drum for overboard water and oil export coolers
- Outline details of gas treatment facilities: 3 stage compression, glycol contactor and export coolers
- Tie-In Availability: 6’’ tie-in spool to production flowline, 3’’ tie-in spool to gas lift flowline, electro-hydraulic-chemical umbilical. 2'' Hot stab for well stimulation available
- High-Level Capacity: Refer to Nelson Platform information
